Filling Equipment

Technical Data: Print this Page

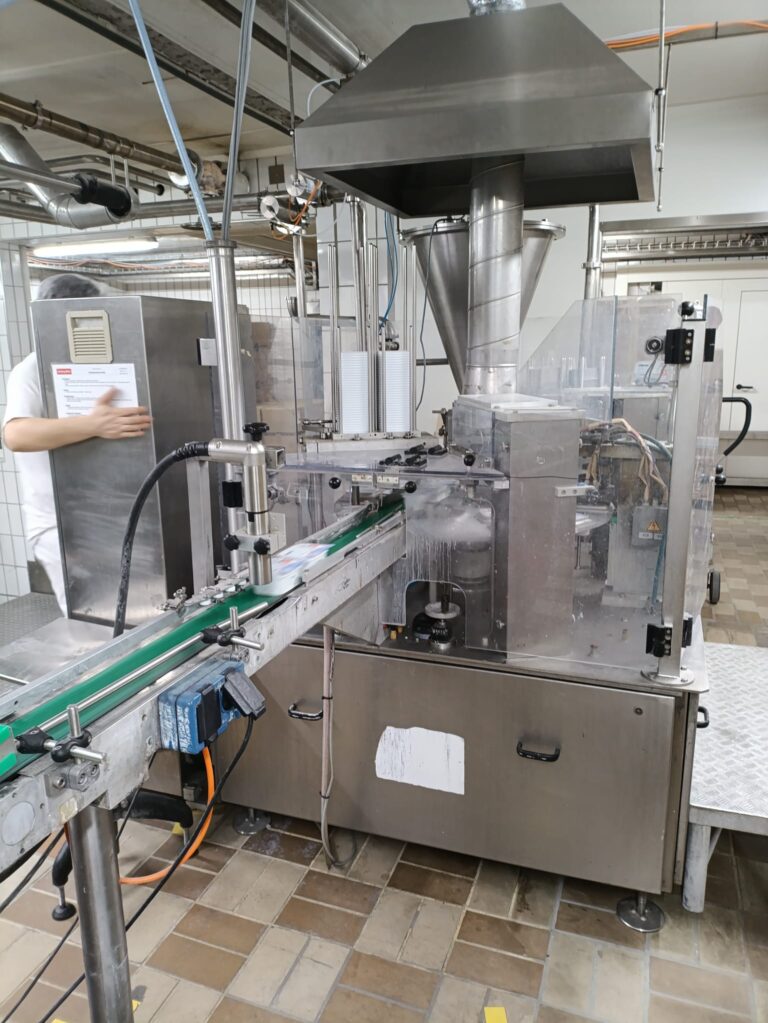

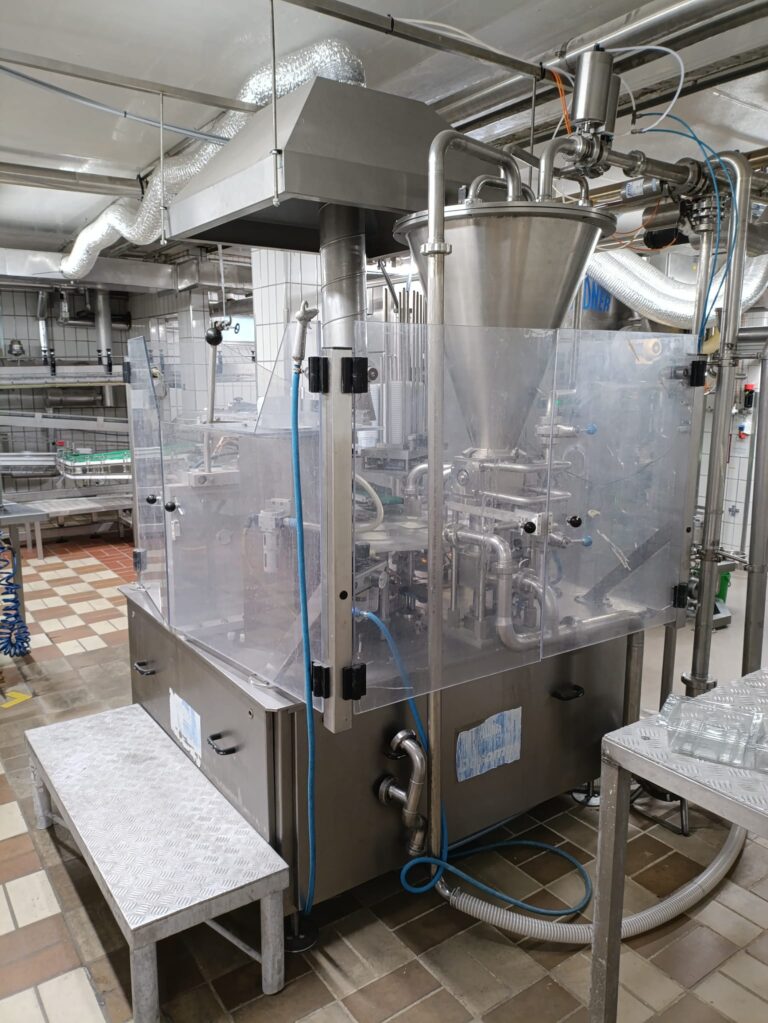

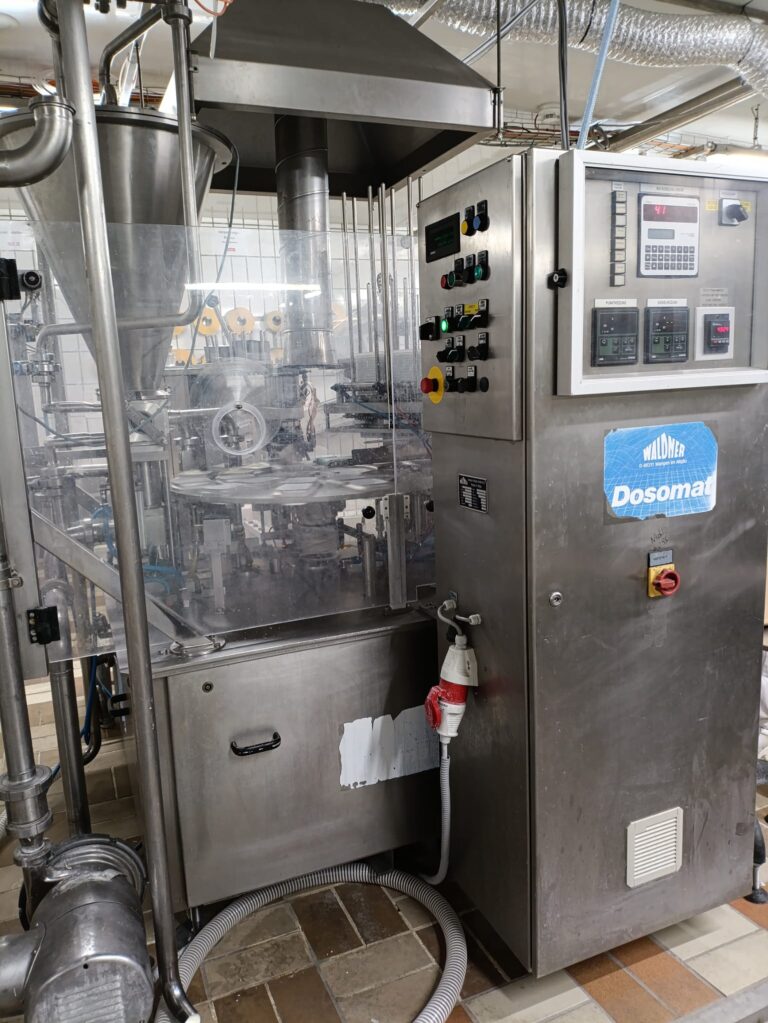

• Manufacturer: Waldner
• Type: DOSOMAT 2/2
• YOM: 1993
• Modernization: 2022
  • Electrical upgrades:
  • Replacement of the cam switching unit
  • New Lenord + Bauer cam switching unit, including wiring harness and connectors
  • New adapter cable for the cam switching unit
  • Temperature controller for the sealing heater
  • Mechanical refurbishment:
  • Replacement of various sprockets
  • Replacement of DU bushings and thrust washers
  • Replacement of a pneumatic cylinder
  • Replacement of a rod end bearing
• Capacity: 4800 cups/h
• Available cup formats:
• Format 1: Round cups, Ø 95 mm
  • Filling weight: 200–500 g
  • Two-lane operation
  • Automatic cup denesting
  • Heat sealing with aluminium foil lids
  • Format tooling according to WALDNER’s 2024 order confirmation

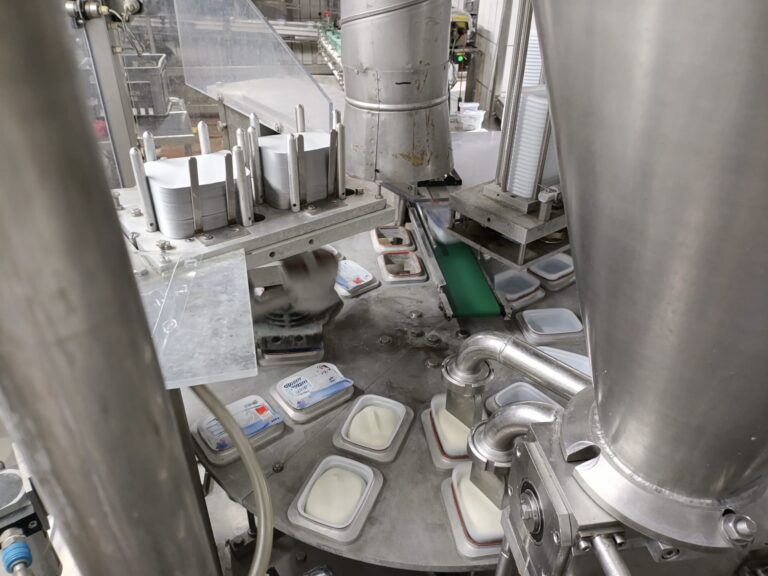

• Format 2: Rectangular cups for quark
  • Rectangular plastic cups with rounded corners
  • Nominal filling weight: 200 g
  • External dimensions at the top: approx. 110.6 × 84.2 mm
  • Cup height: approx. 47.3 mm
  • Suitable for quark and similar dairy products
• Power supply: 3 × 400 V / 50 Hz
• Connected load: 8 kW
• Rated current: 12 A
• Control voltage: 24 V
• Machine weight: 1600 kg
• Condition: good, fully operational
